The hydraulic pump functions by extracting oil from the reservoir and directing it to the control valve at elevated pressure. This pressurized oil then travels to the hydraulic cylinder, activating the piston responsible for lifting the arms. Powered by interlinked gears connected to the engine, the hydraulic pump operates efficiently.
Various types of hydraulic pumps exist, including gear, plunger, vane, and screw pumps. Among them, gear pumps are prevalent in tractor applications due to their capacity to deliver substantial oil flow compared to plunger pumps. Typically, the oil pressure within the pump ranges from 150 to 200 kg/cm2.

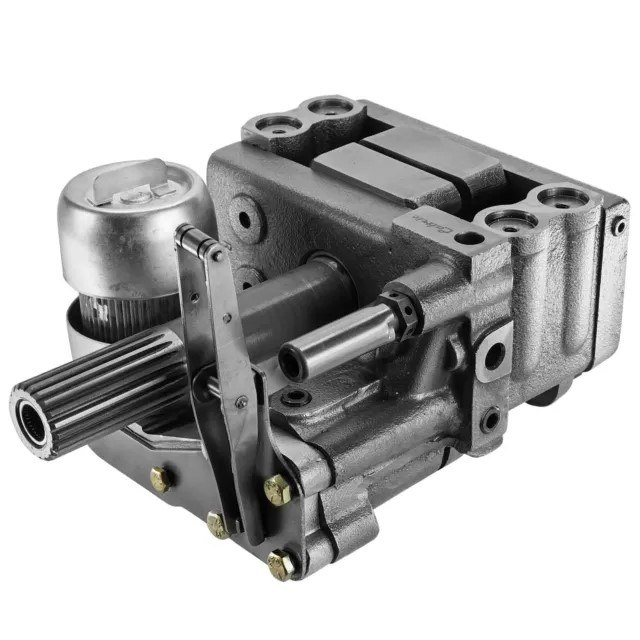

| MASSEY FERGUSON Hydraulic Pump | |||
| Row | OEM Reference | Compatible Model | Description |
| 1 | 184472M93 180473M93 184473M93 | MF – 35, 65, 765 | 10 SPLINE MARK-I FILTER FACES UP PRESSURE 2300 – 2800 PSI |
| 2 | 713916M92 | MF – DI | 21 SPLINE MARK- I FILTER FACES PRESSURE 2300 – 2800 PSI |
| 3 | 899205M91 | MF – 135, 165 | 10 SPLINE MARK – II FILTER FACES UP PRESSURE 2500-3000 PSI |
| 4 | 1684582M92 | MF – 135 , 148 , 165, 175, 178, 185, 188 , 1080, 1085 | 10 SPLINE MARK-II FILTER FACES UP EXTRA DISTENCE PLATE FITTED PRESSURE 2800-3200 PSI |
| 5 | 1684583M92 | MF – 135, 148 , 165, 168, 185, 188 | 21 SPLINE MARK-II FILTER FACES UP EXTRA DISTENCE PLATE FITTED PRESSURE 2800-3200 PSI |
| 6 | 3761330K91 | MF – 240 | 21 SPLINE MARK III FILTER FACES DOWN CURVE TYPE LEVER PRESSURE 2300-2800 PSI |
| 7 | 3761332K91 | MF – 240 | 21 SPLINE MARK III FILTER FACES DOWN CURVE TYPE LEVER PRESSURE 2800-3200 PSI |
| 8 | 1662693M93 | MF – 240, 245, 250 | 21 SPLINE MARK III FILTER FACES DOWN STRAIGHT LEVER PRESSURE 2800-3200 PSI |
| 9 | 1683301M92 | MF – 135, 148 , 165, 168, 185 , 188, 240, 250, 265, 275, 285, 290, 298, 365, 375, 390, 398, 399, 550, 565, 575, 590, 595, 675, 690, 698, 699 | WITHOUT PRESSURE CONTROL UNIT 21 SPLINE MARK III FILTER FACES DOWN STRAIGHT LEVER |
| 10 | 1675125M92 1672251M92 1872449M96 1868439M98 | MF – 230, 235, 240, 245, 250, 255, 265, 270, 282, 283, 285, 290, 298 | WITH PRESSURE CONTROL UNIT 21 SPLINE MARK III FILTER FACES DOWN |
| 11 | 3773700M92 | MF – 285 | WITH PRESSURE CONTROL UNIT 21 SPLINE MARK III FILTER FACES DOWN CURVE TYPE LEVER |
| 12 | 3701159M91 | MF – 399 | 21 SPLINE MARK III FILTER FACES DOWN CURVE TYPE LEVER |
| 13 | 9002973M91 | MF – 1215 | DOUBLE FLOW |
| 14 | 183005M91 | MF – 35, 50, 65 | 23MM 10 SPLINE FILTER FACES UP PRESSURE 2300-2800 PSI |
| JOHN DEERE Hydraulic Pump | |||
| Row | OEM Reference | Compatible Model | Description |
| 1 | AR97872 | 1640, 1800, 2040, 2100, 2250, 2300, 2400, 2500, 2600, 2700, 2800, 2900, 3000, 3100, 3255, 3350, 3600, 4030 | Displacement = 40 cm³ |
| 2 | AL156335 | 6010, 6020, 6100, 6200, 6300, 6400, 6500, 6610, 6620, 6630, 6830, 6930 | Displacement = 28 cm³ |
| 3 | RE73947 | 5076E, 5082E, 5083E, 5090, 5101E, 5210, 5310, 5320N, 5400, 5410, 5420, 5510, 5520, 5600, 5625, 5705, 5715, 5725 | Displacement = 29 cm³ |
| 4 | AL200830 | 6010, 6020, 6090MC, 6100, 6200, 6300, 6400, 6510, 6520, 6530, 6600, 6715, 6830, 6930, 7130, 7230, 7330, 7505 | Displacement = 28 cm³ |
| 5 | AR103033 AR103036 | 1020, 1030, 1040, 1100, 1350, 1500, 1600, 1750, 1800, 1850, 1950, 2000, 2100, 2240, 2250, 2355, 2440, 2550, 2600, 2755, 2850, 2955, 3000, 3100, 3340, 3350, 3640, 3650 | Displacement = 23 cm³ |
| 6 | AL37750 AR55346 | 2040, 820, 830, 920, 930 | 11cm, .69ci Length: 6-7/8″ (Measured from mounting flange to the back of pump) |
| 7 | AR56160 | 2130, 3030, 3130, 4020, 4040, 4240, 4440 | Displacement = 50cm³ |
| 8 | AR94660 | 3010, 3020, 4000, 4010, 4020, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4350, 4430, 440, 4450, 4455, 4520, 4620, 4630, 4640, 4840, 5010, 5020, 6030, 7020, 7520 | Displacement = 50cm³ |
| 9 | AR94661 | 4000, 4020, 4040, 4230, 4240, 4320, 4430, 4440, 4520, 4620, 4630, 4640, 4650, 4850, 8430, 8440, 8630, 8640 | Displacement = 65 cm³ |
| 10 | RE197623 | 5103, 5105, 5200, 5203, 5205, 5210, 5220, 5300, 5300N, 5310, 5310N, 5320, 5320N, 5400, 5400N, 5410, 5410N, 550N | |
| 11 | RE208450 | 5083EN, 5093EN, 5101EN, 5425, 5425N, 5525, 5625 | 33.3/11.9 CC |
| 12 | RE223233 | 5045D, 5045E, 5055D, 5055E, 5065E, 5065M, 5075E, 5075M, 5103, 5203, 520, 5303, 5310, 5403, 5410, 5610 | Length = 262mm Inside max. liters per minute = 38 Direction of rotation = left |
| 13 | AR39695 | 2520, 3010, 4010 | Displacement = 40 cm³ |
| 14 | AL75305 | 7200, 7210, 7400, 7410, 7505, 7510, 7600, 7610, 7700, 7710, 7800, 7810 | Displacement = 41 cm³ |
| 15 | AR101807 | 2350, 2355, 2550, 2555, 2750, 2755, 2950, 2955, 3010, 3150, 3155, 4010, 4020 , 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4430, 4440 , 4450, 4455, 4520, 4620, 4630, 5010, 5020, 7020, 7520, 9950 | 50cm, 3.0ci |
| 16 | RE20839 | 4555, 4560, 4755, 4760, 4955, 4960 | 65cm, 4.0ci |
| 17 | AR102245 | 8850 | |
| 18 | RE33467 | 8560, 8760, 8960, 8570, 8670, 8970 | 65cm, 4.0ci |
| 19 | AR102545 | 1640, 2040, 2140, 2955, 3010, 3020, 4000, 4010, 4020, 4040, 4050, 4230, 4240, 4250, 4430, 4440, 4450, 4520, 4620, 4630, 5010, 5020, 7020, 7520 | |
| KUBOTA Hydraulic Pump | |||
| Row | OEM Reference | Compatible Model | Description |
| 1 | K3C081-82204 | M4N-071HD12, M4N-071HDC12, M4N-071HDRC12 M5-091HD, M5-091HD12, M5-091HDC, M5-091HDC12, M5-091HF, M5-091HFC,M5-111HD, M5-111HD12, M5-111HDC, M5-111HDC12,M5-111HDC24, M5-111HF, M5-111HFC, M5L-111, M5N-091HD12, M5N-091HD24, M5N-091HDC12,M5N-091HDC12-PC, | |
| 2 | 38180-36100 | L275, L1802, L2002, L2202, L2402 | |
| 3 | 3A111-82204 (Replaces 3A111-82202, 3A111-82200) | M4700, M5400, M6800, M8200, M9000 | |
| 4 | 35110-76100 | L175, L185, L245, L295, DH1101, DH1301, Z750, Z751, Z851 | |
| 5 | 34150-36100 | L175, L185, L245, L1501, L1801, L225, L2000, L2201, L3001 | |
| 6 | 6C200-37305 | B2630HSD, B3030HSD, B3030HSDC, B3030HSDCC | |
| 7 | 6C040-36308 | B1700D, B1700E, B2100D, B2100E, B2100HSD, B2400D, B2400E, B2400HSD, BX1800D, BX2200D | |
| 8 | T1150-36440 | L2800DT/HST, L2800F, L3130DT/EST/HST, L3130F, L3400DT/HST, ;3400F, L3430DDT/EST/HST/C, L3830DT/EST/HST, L3830F, L4300DT, L4300F, L4400DT, L4400F | |
| 9 | TC050-36440 | MX5000DT, L3940DT, MX5000DT, L3940 | |
| 10 | 3C001-82204 | M5040, M5140, M6040, M6006, M7040, M7060, M8540 | |
| CASE Hydraulic Pump | |||
| Row | OEM Reference | Compatible Model | Description |
| 1 | 762309R91 762226R91 762990R97 762896R97 756130R92 756530R92 762418R92 762418R92 | McCORMICK 135, 137, 235, 237, 265 | Displacement = 6 cm³ Direction of rotation = Right |
| 2 | 704330R95 704330R93 | B250, B275, B414, B434, B444 | Displacement = 11 cm³ Direction of rotation = Right |
| 3 | 3145248R92 | 353, 383, 423, 433, 453 , 523, 533, 553, 633 | Displacement = 8 cm³ Direction of rotation = Left |
| 4 | 3145248R93 | 624, 644, 654, 724, 734, 744, 824, 844 | Displacement = 8 cm³ Direction of rotation = Left |
| 5 | 3145619R91 314619R92 3146450R91 | 523, 553, 624, 654, 724, 734, 824, 834, 844, 946, 1046, 1246 | Displacement = 8 + 6 cm³ Direction of rotation = Left |
| 6 | 3147535R92 3147535R93 3147535R94 3147535R92 | 633, 644, 645, 733, 743, 744, 745, 833, 840, 844, 845 | Displacement = 8 + 8 cm³ Direction of rotation = Left |
| 7 | 1328655C91 1986961C91 | 743 XL, 745 XL, 844 XL, 845 XL | Displacement = 8 + 8 cm³ Direction of rotation = Left |
| 8 | 3401189R92 3401189R93 3401189R94 3401189R92 3401189R93 3401189R94 | 745XL, 845XL, 856XL | Displacement = 11 + 8 cm³ Direction of rotation = Left |
| 9 | 3146446R91 3146446R92 3146446R93 3148938R92 3142096R91 | 523, 553, 624, 654, 724, 734, 824, 834, 946, 1046, 1045, 1246 | Displacement = 11 + 8 cm³ Direction of rotation = Left |
| 10 | 3223932R92 3223932R93 8988OC91 | 955, 1055, 956 XL, 1056 XL | Displacement = 11 + 8 cm³ Direction of rotation = Left |
| 11 | 3220221R92 3220221R93 | XL SERIES: 956 XL, 1055 XL, 1056 XL | Displacement = 11 + 8 cm³ Direction of rotation = Left |
| 12 | 3226942R92 3226942R93 | XL SERIES: 1255 XL, 1455 XL | Displacement = 14 + 11 cm³ Direction of rotation = Left |
| 13 | 89880C91 | XL PLUS SERIES: 845, 856, 955, 956, 1056 | Displacement = 11 + 8 cm³ Direction of rotation = Left |
| 14 | 301022A1 B506077 1967851C1 | 2000 SERIES: 2120, 2130, 2140, 2150 | Displacement = 26 cm³ Direction of rotation = Right |
| 15 | 1530459C1 1967852C1 | VINEYARD 2120, 2130, 2140 | Displacement = 17 cm³ Direction of rotation = Right |
| 16 | 155700750002 | C SERIES: C55, C64, C70A CS SERIES: CS78, CS86, CS88, CS94 | Displacement = 16 + 11 cm³ Direction of rotation = Left |
| 17 | 132375101 | CS SERIES: CS78, CS80, CS86, CS88, CS94, CS100 | Displacement = 22 + 16 cm³ Direction of rotation = Left |
| 18 | 155700750003 | CX SERIES: CX50, CX60, CX70, CX80, CX90, CX100 3000 SERIES: 3210, 3220, 3230, 3240 4000 SERIES: 4210, 4220, 4230, 4240 | Displacement = 16 + 11 cm³ Direction of rotation = Left |
| 19 | 132575005 | CS SERIES: CS100, CS110, CS120, CS130, CS150 | Displacement = 32 cm³ Direction of rotation = Right |
| 20 | 132575003 | CS SERIES: CS100, CS110, CS120, CS130, CS150 | Displacement = 38 + 16 cm³ Direction of rotation = Right |
| 21 | 1343659C1 1343659C2 | MAXXUM SERIES: 5120, 5130, 5140, 5150 | Displacement = 28 cm³ Direction of rotation = Left |
| 22 | 93835C91 406763R92 66513C92 308873A1 93835C92 | SERIES: 238, 248, 258, 268 CX SERIES: CX80, CX90, CX100, 95XL 3000 SERIES: 3210, 3220, 3230 4000 SERIES: 4210/4220, 4230/4240 84 SERIES: 484, 584, 684, 784, 884 85 SERIES: 385, 485, 585, 685, 785, 885 95 SERIES: 395, 495, 595, 695, 795, 895, 995 BD SERIES: 238, 258, 268 C SERIES: C50, C60, C70, C80, C90 STANDARD SERIES: 454, 464, 474, 475, 574, 674 HYDRO SERIES: HYDRO84, HYDRO85 | Displacement = 29 cm³ Direction of rotation = Left |
| 23 | 324628A1 | 2140, 2150 | Displacement = 17 + 8 cm³ Direction of rotation = Right |
| 24 | 3054300R93 | BD SERIES: 320, 322, 323, 324, 326, 330, 430, 432, 436 , 438, 439, 440 | Displacement = 8 cm³ Direction of rotation = Right |
| 25 | 3147535R93 | 844SB | Displacement = 8 + 8 cm³ Direction of rotation = Left |
| 26 | 155700750017 | CS38, CS68, CS75 | Displacement = 19 + 8 cm³ Direction of rotation = Left |
| FENDT Hydraulic Pump | |||
| Row | OEM Reference | Compatible Model | Description |
| 1 | G144940013010 G144940013011 G238401100012 G278940100019 G281940100010 | 2, 2S | Displacement = 16 cm³ Direction of rotation = Left |
| 2 | G138861010 011 G144940012 010 G238401100 012 | 3S, 4S, 5S, 255GT, 275GT, 103S, 104S, 105S, 106S, 108S, 260S, 303LS, 304LS, 305LS, 306LS, 308LS, 309LS | Displacement = 16 cm³ Direction of rotation = Left |
| 3 | G278941100 G27894110010 | 104S, 105, 106, LS203, 275GT, 600LS, 600LSA, 275S | Displacement = 19 cm³ Direction of rotation = Left |
| 4 | G144940600001 245292900 | 610, 611LS, 104S | Displacement = 11 cm³ Direction of rotation = Left |
| 5 | G231941010010 | 1D, 1E, 1Z, Fix2E | Displacement = 8 cm³ Direction of rotation = Left |
| 6 | G178940010010 G117940011010 | 103LS, 103LSA, 103S, 103SA | Displacement = 16 + 14 cm³ Direction of rotation = Left |
| 7 | G144940012010 | 102, 102S, 102SA, 103, 103S, 103SA, 104LS, 104S, 104SA, 104S, 105, 105LS, 105LSA, 105S, 106LS, 106LSA, 106S, 106SA, 108LS, 108LSA, 108S, 108SA | Displacement = 14 cm³ Direction of rotation = Left |
| 8 | G144940013010 G144940013011 G238401100012 G278940100019 G281940100010 | 102, 102S, 102SA, 103, 103S, 103SA, 104LS, 104S, 104SA, 104S, 105, 105LS, 105LSA, 105S, 106LS, 106LSA, 106S, 106SA, 108LS, 108LSA, 108S, 108SA | Displacement = 16 cm³ Direction of rotation = Left |
| 9 | G281940010010 | 102, 102S, 102SA, 103, 103S, 103SA, 104LS, 104S, 104SA, 104S, 105, 105LS, 105LSA, 105S, 106LS, 106LSA, 106S, 106SA, 108LS, 108LSA, 108S, 108SA | Displacement = 19 cm³ Direction of rotation = Left |
| 10 | G144940012010 | 200S, 200SA, 200V, 200VA, 203P, 203P/II, 203PA, 203PA/II, 203V, 203V/II, 203VA, 203VA/II | Displacement = 14 cm³ Direction of rotation = Left |
| 11 | G144940013010 G144940013011 G238401100012 G278940100019 G281940100010 | 200S, 200SA, 200V, 200VA, 203P, 203P/II, 203PA, 203PA/II, 203V, 203V/II, 203VA, 203VA/II | Displacement = 16 cm³ Direction of rotation = Left |
| 12 | G380940010110 | 200S, 200SA | Displacement = 16 + 11 cm³ Direction of rotation = Left |
| 13 | G178940010010 G117940011010 | 204P, 204PA | Displacement = 16 + 14 cm³ Direction of rotation = Left |
| 14 | G155940010010 | 200V, 200VA | Displacement = 11 + 8 cm³ Direction of rotation = Left |
| 15 | G178940010010 G117940011010 | 304LS, 304LSA, 305LS, 305LSA, 306LS, 306LSA, 307LS, 307LSA, 308LS, 308LSA, 309LS, 309LSA, 310LSA, 311LSA, 312LSA | Displacement = 16 + 14 cm³ Direction of rotation = Left |
| 16 | G117941010011 | 300LS, 306LSA, 307, 307C, 308, 308C, 309, 309C | Displacement = 16 + 14 + 8 cm³ Direction of rotation = Left |
| 17 | G144940013010 G144940013011 G238401100012 G278940100019 G281940100010 | 509, 510, 511, 512, 514, 515 | Displacement = 16 cm³ Direction of rotation = Left |
| 18 | G144940012010 | 600LS, 600LSA, 610LS, 610LSA, 610S, 610SA, 611LS, 611LSA, 611S, 611SA, 612LSA, 612SA, 614LSA, 614SA, 615LSA, 622LSA, 626LSA | Displacement = 14 cm³ Direction of rotation = Left |
| 19 | G144940013010 G144940013011 G238401100012 G278940100019 G281940100010 | 600LS, 600LSA, 610LS, 610LSA, 610S, 610SA, 611LS, 611LSA, 611S, 611SA, 612LSA, 612SA, 614LSA, 614SA, 615LSA, 622LSA, 626LSA | Displacement = 16cm³ Direction of rotation = Left |
| 20 | G281940010010 | 600LS, 600LSA, 610LS, 610LSA, 610S, 610SA, 611LS, 611LSA, 611S, 611SA, 612LSA, 612SA, 614LSA, 614SA, 615LSA, 622LSA, 626LSA | Displacement = 19 cm³ Direction of rotation = Left |
| 21 | G285940010010 | 600LS, 600LSA, 610LS, 610LSA, 610S, 610SA, 611LS, 611LSA, 611S, 611SA, 612LSA, 612SA, 614LSA, 614SA, 615LSA, 622LSA, 626LSA | Displacement = 22 cm³ Direction of rotation = Left |
| 22 | G385940010010 | 600LS, 600LSA, 610LS, 610LSA, 610S, 610SA, 611LS, 611LSA, 611S, 611SA, 612LSA, 612SA, 614LSA, 614SA, 615LSA, 622LSA, 626LSA | Displacement = 11 + 8 cm³, 19 + 11 cm³, 19 + 11 + 2 cm³ Direction of rotation = Left |
| 23 | G183860010011 | 610LSA | Displacement = 16 cm³ Direction of rotation = Left |
| 24 | G144940012010 | F250GT, F275GT, F275GTII | Displacement = 14 cm³ Direction of rotation = Left |
| 25 | G231941010010 | F231GT | Displacement = 8 cm³ Direction of rotation = Left |
| 26 | G380940010110 | F370GT, F370GTA, F380GT, F380GTA, F380GTH | Displacement = 16 + 11 cm³ Direction of rotation = Left |
| 27 | G395940010011 | F390GTA, F395GTA | Displacement = 16 + 11 + 14 cm³ Direction of rotation = Left |
| 28 | G144940013010 G144940013011 G238401100012 G278940100019 G281940100010 | F231GT, F250GT, F275GT, F275GTII | Displacement = 16 cm³ Direction of rotation = Left |
| 29 | G144940013010 G144940013011 G238401100012 G278940100019 G281940100010 | 520, 522, 524 | Displacement = 16 cm³ Direction of rotation = Left |
| DEUTZ-FAHR Hydraulic Pump | |||
| Row | OEM Reference | Compatible Model | Description |
| 1 | 3400535 1174507 | D30S, D40S, D40L, D50, D55 | Displacement = 8 cm³ Direction of rotation = Right |
| 2 | 1174515 | D25S, D30S | Displacement = 8 cm³ Direction of rotation = Left |
| 3 | 1178247 | D8005 | Displacement = 11 + 8 cm³ Direction of rotation = Left |
| 4 | 2239042 | D40L, D55, D2505, D2506, D3005, D3006, D4005, D4006, D4505, D5005, D5506, D6005 | Displacement = 11 cm³ Direction of rotation = Left |
| 5 | 1262595 1262596 1262637 1175995 1176003 4345674 1175995 1262595 1262596 | D4006, D4506, D5006, D5206, D5505, D5506, D6006, D6206, D6806, D7006, D7206, D8006, D9006, D10006, DX30V, DX36V, DX50V, DX55V, DX160, DX3.10, DX3.30, DX3.50, DX3.70, DX3.90, DX7.10 | Displacement = 15 cm³ Direction of rotation = Left |
| 6 | 1262597 1175656 4309354 | D4007, D4507, D5207C, D6007C, D6207C, D6507C, D6807C, D7207C, D7807C, DX36V, DX50V, DX55, DX160, DX710, INTRAC2002, INTRAC2003, INTRAC2004 | Displacement = 17 cm³ Direction of rotation = Left |
| 7 | 1262644 1176453 1175997 4309355 4345363 1175997 | D5005D, D6005D, D9005D, D6806D, D7206D, D6207, D6507C, D6507, D8006, D9006, D10006, DX3.10V, DX3.30V, DX3.50V, DX3.70V, DX140, DX160, DX3.60, INTRAC2003, INTRAC2004 | Displacement = 19 cm³ Direction of rotation = Left |
| 8 | 1174406 4311477 1175996 1176453 | DX140, DX160, DX7.10 | Displacement = 22 cm³ Direction of rotation = Left |
| 9 | 1176000 1262645 2333314 4309356 | D8006, D10006, D13006, D6807, D6807C, D7207, D7207C, D7007, D7807, D7807C ,DX80, DX86, DX92, DX3.60, DX3.65, DX3.70, DX4.10, DX4.30, DX4.31, 70.90VF | Displacement = 16 + 11 cm³ Direction of rotation = Left |
| 10 | 4311475 4345365 4345372 1175992 | DX85, DX90, DX110, DX120, DX145 | Displacement = 16 + 14 cm³ Direction of rotation = Left |
| 11 | 1174210 4342472 1174211 | DX80, DX86, DX92, DX3.90S, DX4.31, DX4.50, DX4.51, DX4.61, DX4.70, DX4.71, DX6.05 | Displacement = 19 + 11 cm³ Direction of rotation = Left |
| 12 | 245299200 245393100 245397900 245399200 24599200 | 60, 70, 75, 80, 85, 95, 100 | Displacement = 15 cm³ Direction of rotation = Left |
| 13 | 245390900 | 60, 70, 80 | Displacement = 19 cm³ Direction of rotation = Left |
| 14 | 245396300 245396200 245297800 | 75, 85, 95, 100 | Displacement = 22 cm³ Direction of rotation = Right |
| 15 | 132575005 | 80, 85, 90, 100, 105, 106, 110, 115, 120, 135, 150, 160, 175, 200, 230, 260 | Displacement = 32 cm³ Direction of rotation = Right |
| NEW HOLLAND Hydraulic Pump | |||
| Row | OEM Reference | Compatible Model | Description |
| 1 | 5149231 5162569 5167394 5167397 5180275 5180277 | 4635, 5635, 7635 | |
| 2 | 5180271 | L65, L75, L85, L95, TL100 | |
| 3 | 5168841 5170560 | TL70, TL80, TL90, TL100, TN55, TN55D, TN55S, TN65, TN65D, TN65F, TN65S, TN70, TN70D, TN70F, TN70S, TN75, TN75D, TN75F, TN75S, TN80F, TN90F, TN95F, TN55D, TN65D, TN75D, TN75FA, TN85FA, TN95FA, TN55S, TN65S, TN75S | |
| 4 | 5129493 5169041 5179726 | TM115, TM120, TM125, TM130, TM140, TN55, TN55D, TN55S, TN65, TN70, TN70D, TN70F, TN70S, TN75, TN75F, TN90F, TN95F, TN60DA, TN70DA, TN75DA, TN65F, TN80F, TN95F, TN75S, TN60SA, TN70SA, TN75SA | |
| 5 | 5179730, A 25 X | TN 55, 60, 65, 70, 75, 80, 90, 95 | |
| 6 | 81871528 | TS 80, 90, 100, 110, 115 | |
| 7 | 82850804 | TS 90, 100, 110, 115 | |
| 8 | 47133946 | T 7030, 7040, 7050, 7060 TM 175, 190 | |
| 9 | 84164100 84471388 | T 7.250, 7.235, 7.220, 7.260 T 7040, 7030, 7050, 7060 | |
| 10 | 84471387 | T 6.165, 6.140, 6.150, 6.155, 6.160, 6.120, 6.175, 7.175, 7.190, 7.210 | |
| 11 | 84471388 | T 7.230, 7.245, 7.260, T 1804, 2104 | |
| 12 | 87568039 | T 6070, 6030, 6050, 6080 | |
| 13 | 87332725 | T 7510, 7520, 7530 | |
| 14 | 84263360 | T6000 , T6030, T6050, T6070, T6080, T7.170, T7.210, T7.220, T7.260, T7000, T7030, T7040, T7050, T7060 | |
| 15 | 87578037 | TH5040, TH 5040 | |
| DAVID BROWN Hydraulic Pump | |||
| Row | OEM Reference | Compatible Model | Description |
| 1 | K928578 K919048 | 1200, 1210, 1212, 1390, 1410, 1412 | Displacement = 11 cm³ Direction of rotation = Left |
| 2 | K307945 K449605 K200337 K946605 | 1294, 1390, 1394, 1490, 1494, 1594, 1690, 1694 | Displacement = 19 cm³ Direction of rotation = Left |
| 3 | K307945 K949605 K944907 K200916 | 1210, 1212, 1390, 1394, 1410, 1412, 1490, 1494, 1594, 1690, 1694 | Displacement = 15 cm³ Direction of rotation = Left |
| 4 | K916535 K956447 K954263 | 1390, 1394, 1490, 1494, 1594 | Displacement = 15 + 11 cm³ Direction of rotation = Left |
| 5 | K927097 K928578 K962635 K962635 K962688 K917541 K918995 | 880, 885, 990, 995, 1190, 1290 | |
| 6 | K310380 K205598 K952465 K310386 C952465C 405432R91 | 1594, 1674, 1690, 1694 | Displacement = 19 + 14 cm³ Direction of rotation = Left |
| 7 | K918993 K948432 | 990, 1212 | Direction of rotation = Left |
| 8 | K913394 K919372 K961023 K961024 K917695 K913744 K904768 K901637 | 1194, 1294, 1390 | |
